Home > All Products > Air Ratchet Wrench > 3/8" Super Duty Impact Mechanism Ratchet Wrench
  • 3/8" Super Duty Impact Mechanism Ratchet Wrench
  • 3/8" Super Duty Impact Mechanism Ratchet Wrench
BW-238H

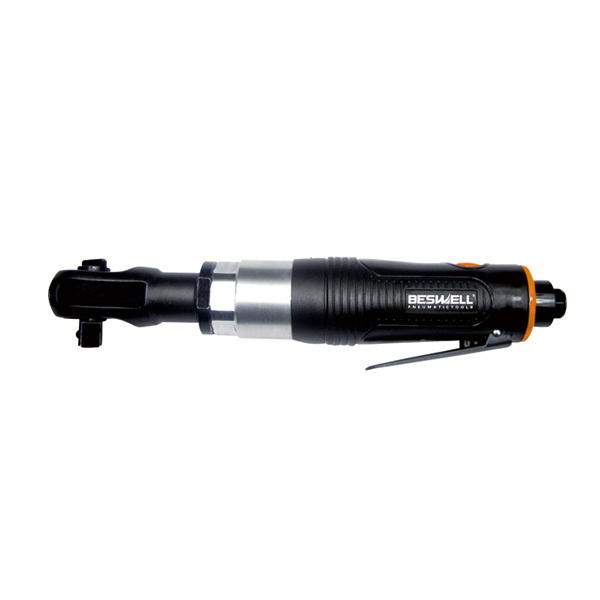

3/8" Super Duty Impact Mechanism Ratchet Wrench

ADD TO INQUIRY
• Up to 75 ft.-lbs /102 N.M. maximum torque
• Special Impact mechanism for absorbing reaction to ensure stability;
• High Speed square drive anvil will be allowed user to finish job in less 50% time;
• Patented “Push Down” style One-Hand Forward/Reverse switch for easy operation
• New 6-Vane motor delivers even more power
•Tools Torque knob for adjusting torque easily
• Heat-treated parts increase durable working life time
• Enclosed ratchet head design to avoid head splitting
• Rubber grip included
• Double Ratchet pawl is option;
• Standard Bolt size is 10mm (3/8 inch)
  • 3/8" Super Duty Impact Mechanism Ratchet Wrench
  • DETAIL
  • TOOL SPECIFICATION
  • APPLICATIONS
  • FEATURES
DETAILS
• Up to 75 ft.-lbs /102 N.M. maximum torque
• Special Impact mechanism for absorbing reaction to ensure stability;
• High Speed square drive anvil will be allowed user to finish job in less 50% time;
• Patented “Push Down” style One-Hand Forward/Reverse switch for easy operation
• New 6-Vane motor delivers even more power
•Tools Torque knob for adjusting torque easily
• Heat-treated parts increase durable working life time
• Enclosed ratchet head design to avoid head splitting
• Rubber grip included
• Double Ratchet pawl is option;
• Standard Bolt size is 10mm (3/8 inch)
TOOL SPECIFICATION
Model FREE SPEED RPM AVERAGE AIR CONSUMPTION( 25% ) SCFM MAX TORQUE Sound dBA(pressure/Power) Ratchet Pawl Speed Reducer EXHAUST LENGTH WEIGHT AIR PRESSURE AIR INLET
N-m ft-lb m/m in kgs lbs psi kg/c㎡
BW-238H 450 4.5 102 75 N/A Single 3 gear, planer Rear 285 11 1.4 3 90 6.3 1/4"
APPLICATIONS
Automotive
Motorcycle
Agriculture Machine
Industry
FEATURES
  • 1254 ft.lb/1700N.M. max. torque
  • Ergonomic handle design and contoured grip
  • Built-in LED light for work in dark areas
  • Lithium-ion batter y for longer running time
  • Standard Bolt Capacity is 24mm (1 inch)
  • Kit include tools,battery,battery charger and BMC;
  • Best for application : Versatile tool ideal for all general and Heavy Duty repairs and maintenance applications
